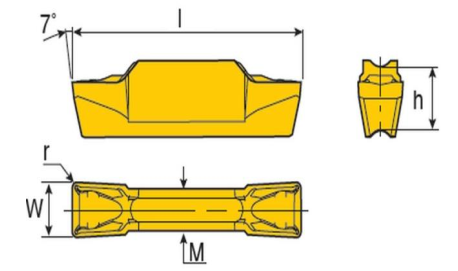

| Code NO. | W | M | l | h | r |
| TDGU 200 | 2 mm | 1.7 mm | 20 mm | 4.7 mm | 0.3 mm |
| TDGU 250 | 2.5 mm | 2.2 mm | 20 mm | 4.7 mm | 0.3 mm |
| TDGU 300 | 3 mm | 2.2 mm | 20 mm | 4.7 mm | 0.3 mm |
| TDGU 400 | 4 mm | 3 mm | 20 mm | 4.7 mm | 0.4 mm |
| TDGU 500 | 5 mm | 4 mm | 25 mm | 5.2 mm | 0.4 mm |
| TDGU 600 | 6 mm | 5 mm | 25 mm | 5.2 mm | 0.8 mm |
