Dimentions for 3/8 inch size 4 flute TiAIN coating carbide end mill(inch):
Specification
Length
Cutting length
Work length
Shank diameter
Flute
Cutting Direction
3/8 inch carbide end mill
2-1/2
1
1
3/8
4
right hand

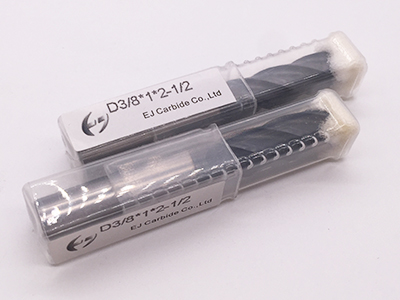

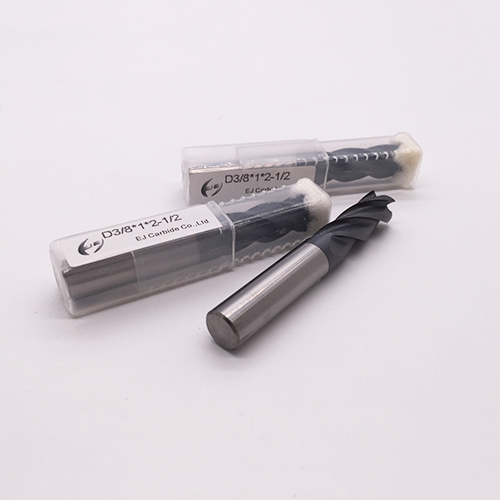

EJ Carbide 3/8 inch size 4 flute TiAIN coating carbide end mill use very fine ultrafine particles 0.3m/mCo12% tungsten carbide as raw material,With high heat resistance and high lubricity AITiN/TiAIN PVD coating,Especially for high-speed cutting, stainless steel, alloy steel, mold steel .
Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
Titanium aluminum nitride coatings become self-lubricating when used at very high speeds, making them ideal for cutting without coolant ("dry machining")
Round shanks allow use with a wide variety of toolholding systems
